AGRICULTURAL FILM

TAJO® CoatingOUT LAYER

Developed with own blending technology, it is an agricultural PO Coating film
customized and to meet the requirements from the local greenhouses.

Product Features

  • 01

  • Super-hydrophilic nano-coating developed with our own technology is added.

  • 02

  • Excellent durability on Anti-drip & Anti-fog by special performance coating to inner layer is guaranteed.

  • 03

  • High transparency film allows more efficient photosynthesis and healthy leaves.

  • 04

  • Heating bill is reduced by better heat retainablity, and 5 layers of film structure ensure its strength.

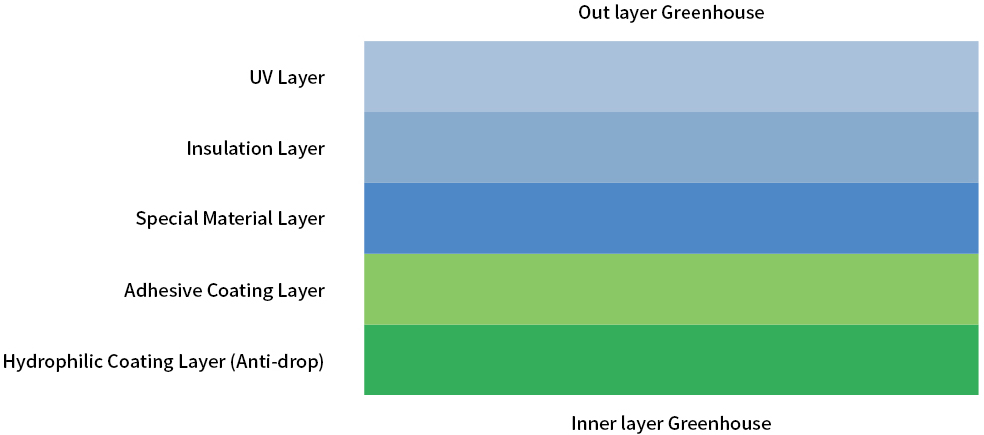

5 layer film construction

Excellent performance on Strength, weatherability & heat retainablity

National Research Institute comparison

Evaluation items Tajo® Coating Other EVA-based Film Japanese PO film
Photosynthesis
light transmittance (%)
88.0 81.8 87.7
UV transmittance (%) 85.8 84.8 66.8
Temperature increase in night 0.2 ~ 0.5↑ - 0.2 ~ 0.5↑
Heating cost saving (%) 13 - 13
Crops growth (%) 10 ~ 15 - 10 ~ 15
  • Test Institution : National Institute of Horticultural & Herbal Science, facility horticultural testing center
  • Test crops : Strawberries, Korean melon, tomato, red pepper, lettuce

Product standards

Thickness (mm) Use Remark
0.08 For out layer only Produce up to 460cm fold width.
0.10 Above 460cm fold width is seamed.
0.12
0.15
  • Optimized for single layer greenhouse with a high gradient (ceiling angle should exceed 25degree)
  • Anti-fog function can be limited by many conditions like installation site, altitude, humidity and etc)
  • Film life is under normal use and conditions. Do NOT use inappropriate materials, PVC pipes, rusted pipes, fumigation or pesticides.

TAJO® Light Diffusion CoatingINNER & OUT LAYER

This is the customized light diffusion coating film developed with nano-coating
technology under Patent registration (Patent No.: 10-1468141) in Korea.

Product features

  • 01

  • Advantage of PO coating films are lasting, and the diffused
    sunlight helps growing the crops healthy and evenly.

  • 02

  • PTemperature fluctuations during day & night are reduced
    for better working condition in the greenhouse.

  • 03

  • The light diffusion film is white, but has equivalent sunlight
    transmittance compared to other ordinary PE films.

  • 04

  • Other films are produced with scattering additive which
    causes the decrease in light transmittance as the diffusion
    rate is higher. However, TAJO light diffusion film (Patent
    registered) provides light scattering together with good
    light transmittance.

Product Analysis

Items TAJO® LIGHT DIFFUSION Other domestic
scattering film
Imported
scattering film
TAJO®
COATING
Other domestic
PO coating
Imported
PO coating
Total light
transmittance(%)
93 92 92 92 91 91
Diffusion rate 40 24 24
Cloudiness(%) 48 28 28 10.5 10.6 10.4
Tensile strength 3250 2350 2350 3500 2911 2920
Elongation rate(%) 650 911 911 750 1028 832
Tearing strength(N/㎝) 1250 1025 1025 1300 1231 1129
  • In the case of light diffusion coating film,  It helps that the inside of greenhouse temperature is 2~3 Celsius degree lower compared to other ordinary PE films.

Technology information

Light is diffused in the greenhouse to make the temperature 2-3 Celsius degrees lower compared to other ordinary PE film measured within the same time.
diffusion effect prevents the direct sunlight in the greenhouse to give less stress to the crops.

Product standards

Thickness (mm) Suggested product life (year) Application
0.08 2 Out layer greenhouse cover
  • Optimized for single layer greenhouse with a high gradient (ceiling angle should exceed 25degree)
  • Anti-fog function can be limited by many conditions like installation site, altitude, humidity and etc)
  • Film life is under normal use and conditions. Do NOT use inappropriate materials, PVC pipes, rusted pipes, fumigation or pesticides.

Cautions for Coating film

Please read the product manual of the agricultural PO long-term TAJO® Coating Film before installation to greenhouse.
(Do not use the film for other purpose or use)

User guide [Cautions]

Greenhouse film has different functions inside and outside, so be sure to install it so that the letters printed on the film surface can be
seen correctly from the outside of the greenhouse.

House Film should not be scratched by dragging to the ground or rusted pipe. The coating surface could be damaged, and it will lead film
tearing and inferior performance on anti-drip effect.

Do not get the product wet, and store it in a cool and shaded place as there is a risk of film sticking when stored in a hot and humid place.

When installing, apply the pad film to prevent damage from the pad spring.

The house film can get damaged often during installation of side window or ventilator. Proper installation must be taken to avoid film damage.

Do not stretch the film on hot days as it will contract when cool and may weaken, and if it is too loose, it will cause wrinkles and deteriorate
anti-dripping effect.

Winkle or twist by improper installation causes inferior anti-drip effect, and lanyard should be installed loosely to avoid winkle on the film.

Ceiling angle should exceed 25degree for smooth water sliding.

Improper material, sulfur, fumigation, sulfur base or chloride base agents, affect the shortening the life span.

Some water forming and dropping at early installation. But after sufficient moisture is supplied in 1-2 months, the coating layer becomes
becomes stabilized and activates anti-drip effect in the greenhouse.

When installing film on the greenhouse, more than 2 people must carry and not drag the film on the ground. Spread the film alongside
the greenhouse and make sure the film faces correct way according to the user guide.

When the film is seamed, the anti-drip effect is deteriorated on this part. The seamed area should be concerned and placed properly
when installing in the greenhouse.

TAJO® coating must be applied as only out layer film at greenhouse. Do not use it for inner layer and water screen greenhouse in the case
of double layer greenhouse.

Take a caution when handling and moving. Do not hold the strings on the package bands when moving them.
The strings on the package bands could be got cut off due to its heavy weight, and the heavy box falling into you causes injure or fracture.
